Prefabricated light steel structure Prefab Steel Structure building for warehouse / workshop
Steel Structure Construction Building Materials
A: Components of galvanized light steel structure
1)Wall panel: sandwich panel with color steel two sides and EPS foam filling width:1200mm 1k=1200
2)Column: C style steel, H shape
3)Floor beam: C style steel,200*40*2.0mm
4)Floor: light magnesium board (our patent)
5)Stair: metal
6)Roof truss: angle steel
7)Purling tube metal
8)Roof panel: corrugated sandwich panel with color steel two sides
9)Door: aluminum frame with panel same as wall, with lock
Remark: this list is for your reference but the elements can vary.
Technique Index
Earthquake resistante: 8 fission intensity
Wind pressure: <31m/s about 10 grade
Roofing snow load; <80kg/m2
Roofing live load: 50kg/m2
B: The advantages of light steel structure
1)Economic : quick installed and saving the cost of construction
2)Reliable quality: mainly produced in the factory and control the quality
3)big space: the max span of prefab steel structure can reach 80meters
4)antiseismic: because the weight is light
5)Beautiful appearance: can use different colors
6)Long lifespan: can be used more than 50 years

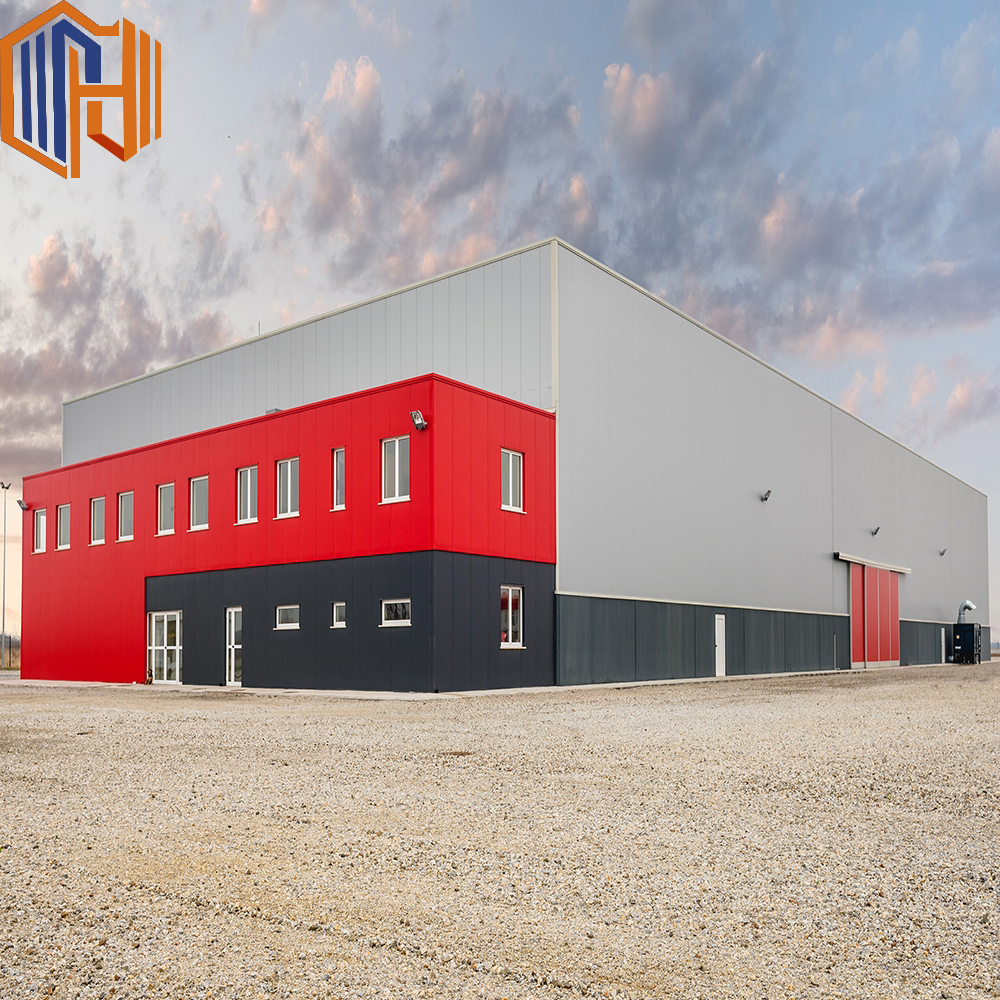

C:Steel structure warehouse
|
Specifications
|
1)Size:MOQ is 10m2, width X length X eave height, roof slope
|
|
2)Span: 9-180m,type:Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors!
|
|
|
3)Height: 3-10m
|
|
|
4)Slope: 1/20, 1/10,1/5,1/3
|
|
|
5)column distance: 6-9m
|
|
|
6) Base:Cement and steel foundation bolts
|
|
|
7) Column and beam:Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable
|
|
|
8) Bracing: X or V or other type bracing made from angle, round pipe, etc
|
|
|
9) C or z purlin:Size from C120~C320, Z100~Z200
|
|
|
10) Roof and wall panel:Single colorfull corrugated steel sheet0.2 ~1.2mm thick, such as YX25-207-828 or sandwich panel :sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, YX40-320-960
|
|
|
11)Accessories:Semi-transparent skylight belts, Ventilators, down pipe, outer gutter, etc
|
|
|
We are glad to bulid steel structre as your given drawing.If you need we design for you, pls supply us the following parameter together with detail size:
|
|
|
Design Parameters
|
1)Live load on roof(KN/M2)
|
|
2)Wind speed(KM/H)
|
|
|
3)Snow load (KG/M2) if have
|
|
|
4)Earthquake load if have
|
|
|
5)Crane (if have) ,Crane span, crane lift height, max lift capacity
|
|
|
6)Doors and windows: dimension, quantity, position
|
|
|
7)The materials on the roof and the wall
|
|
|
8)Crane need or not. if yes, please tell me the max lifting weight and max lifting height.
|
|
|
9) If you have other requirements,please also inform us.
|
|
|
10) It is better if you have your own drawings. please send them to me.
|
|
Our professional design engineer team can use modern design softwarehouse, such as AutoCAD, PKPM, 3D3S, SAP2000, TSSD, TEKLA Structure, 3DS Max, to provide you with full design and details.
FAQ
1. You are manufacture factory or trading company?
We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us.
2. Is your price competitive compared with other companies?
Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.
3. Can you send engineers or whole team to install my project?
We will give detailed installation drawings and video for free. We can send engineers as installation director or a team upon request.
4. Do you accept container loading inspection?
You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
5. Do you offer designing service for us?
Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, 5 star hotel.
6. What is the delivery time?
Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 30 days after receiving deposit.
7. How can you get a quotation for your projects?
You can contact us by email, phone, Alibaba TM, WhatsApp, Skype, Viber and so on 24*7 and you will get reply within 8 hours.
